Standard Galvanised Driveway Gates
Engineered for strength, durability and security
The Standard driveway gate range by Blue Engineering in Durban is an excellent balance between strength for gate security, durability for a long service life and budget with great aesthetics.
Our Standard Driveway Gates are made from strong good quality materials we follow solid engineering, fabrication and welding practices so our gates will give you many years of service.
Whilst we offer a wide range of custom designs and offer custom work we have used our many years of experience and assembled a comprehensive range of gates.
By utilising standardised components we have created a range of standard and classic gate designs that are easy on the eye and the budget without compromising quality
.
Our standard range comes in 3 different specification categories that are
available in both sliding gate and swing gate versions in a variety of
styles.
Range Sizes
- 2.5m-6m Widths available
- 1.2m-2.4m Heights avaialble
- Custom sizes available on request

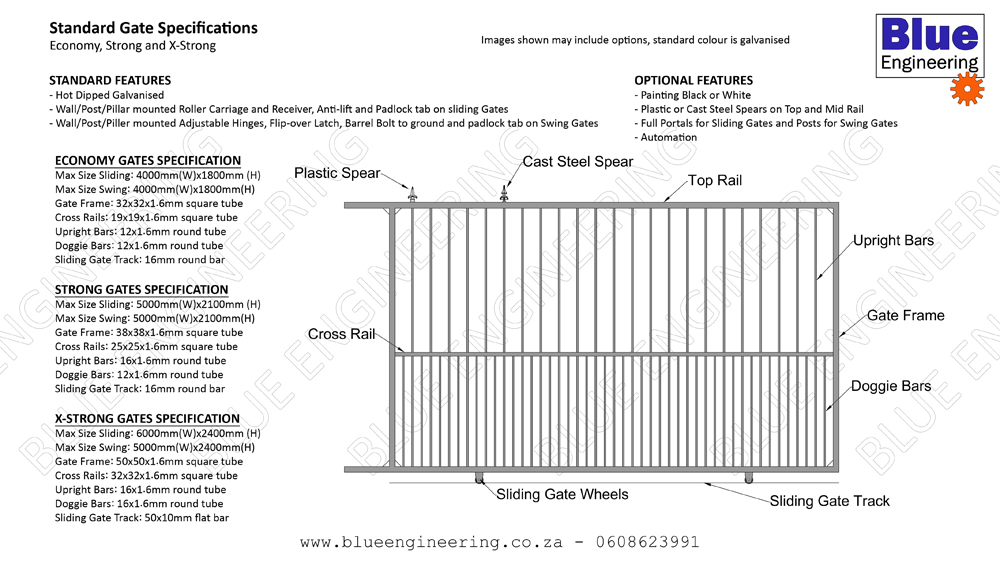

ECONOMY SERIES SPECIFICATIONS

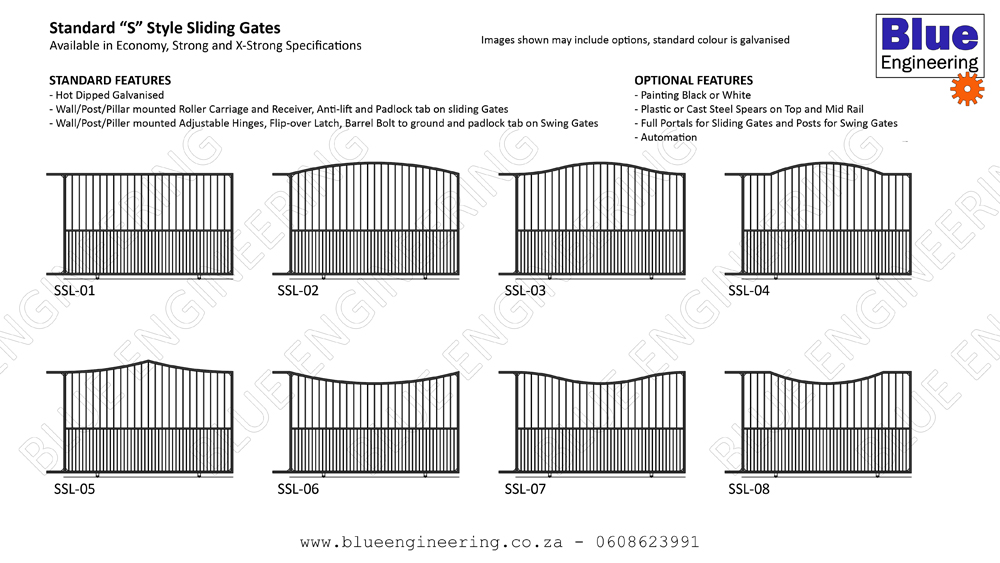

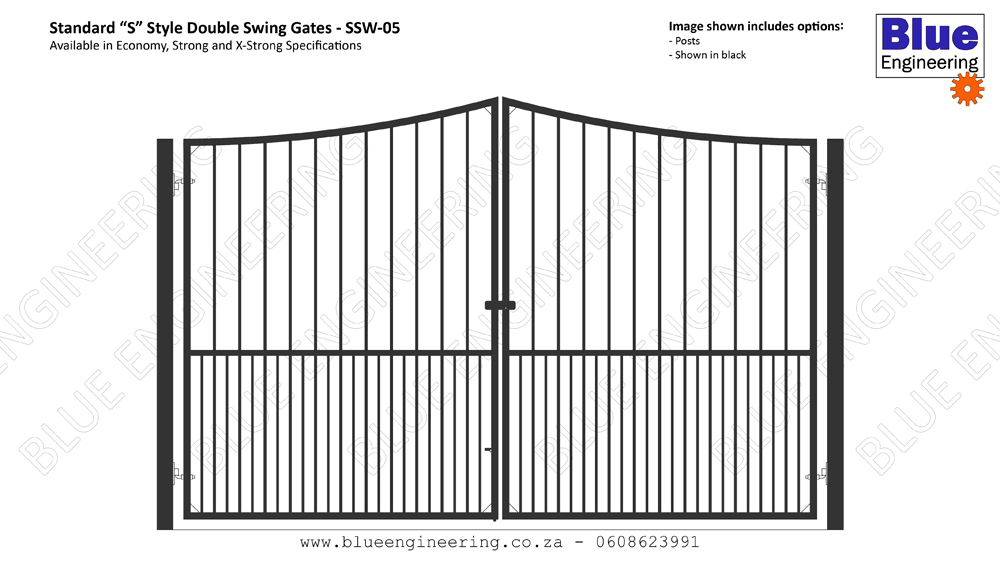

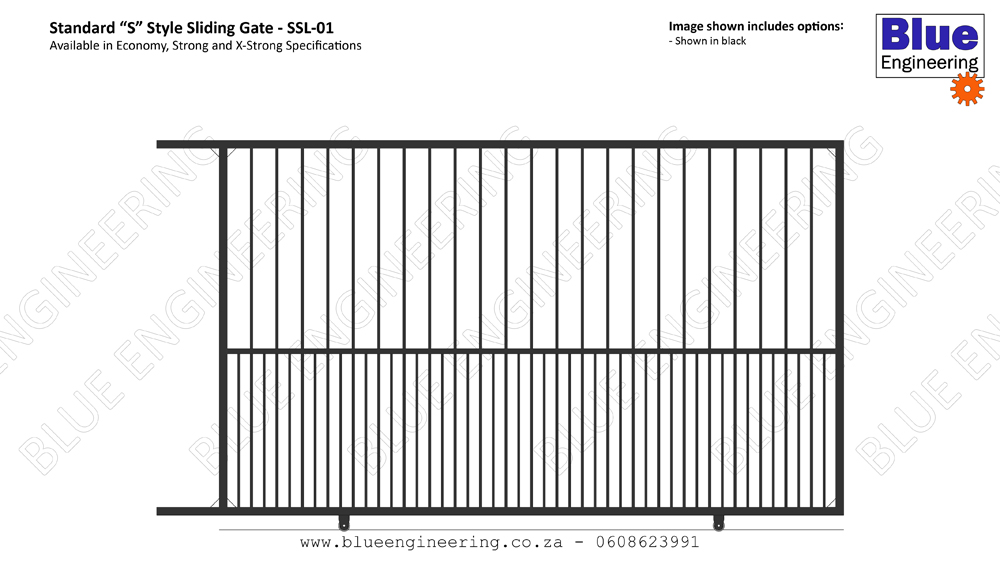

Only available in “S” Style Sliding and Swing Gate Range
Maximum Width: 4000mm
Maximum Height: 1800mm
Gate Frame: 32x32x1.6mm square tube
Cross Rails:
19x19x1.6mm square tube
Upright Bars: 12x1.6mm round tube
Doggie Bars:
12x1.6mm round tube
Sliding Gate Tracks: 16mm round bar
Sliding Gates: Wall
mounted roller carriage and receiver
Sliding Gates: Anti-lift and padlock
tabs
Swing Gates: Adjustable hinges
Swing Gates: Flip over latch, drop bolts
and padlock tabs
Hot dipped galvanised
Main Options
Automation
Painting –
Standard colours are black and white
Plastic or Cast Steel Spears
Posts for
swing gates *
Portals for sliding gates *
*Posts and portals are only
required if there is no suitable wall/pillar/post to mount the gates on

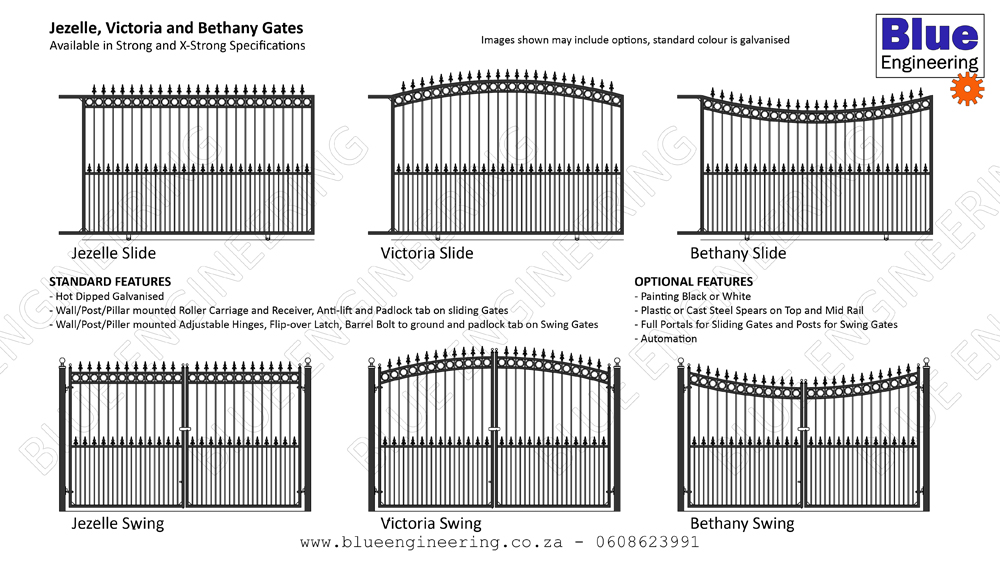

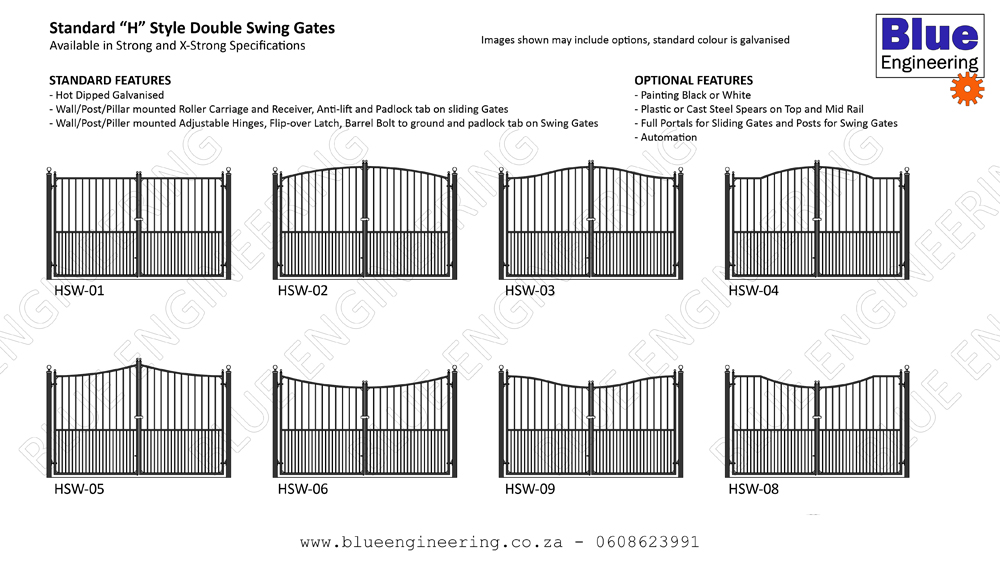

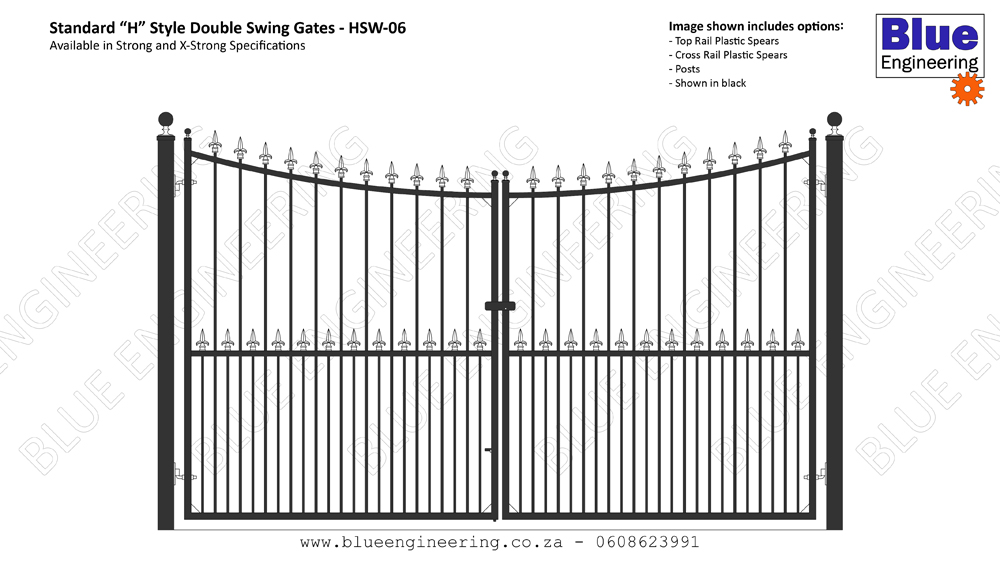

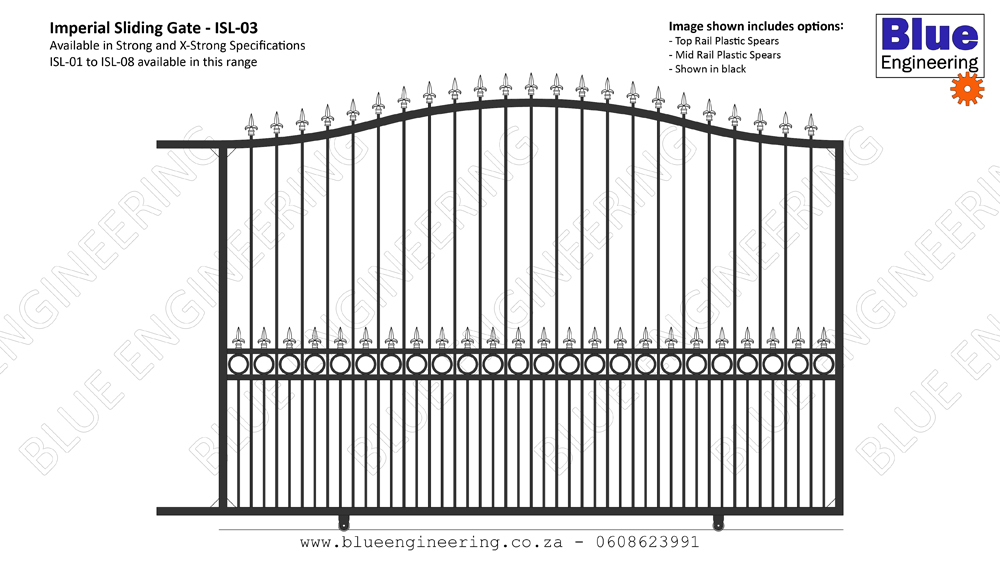

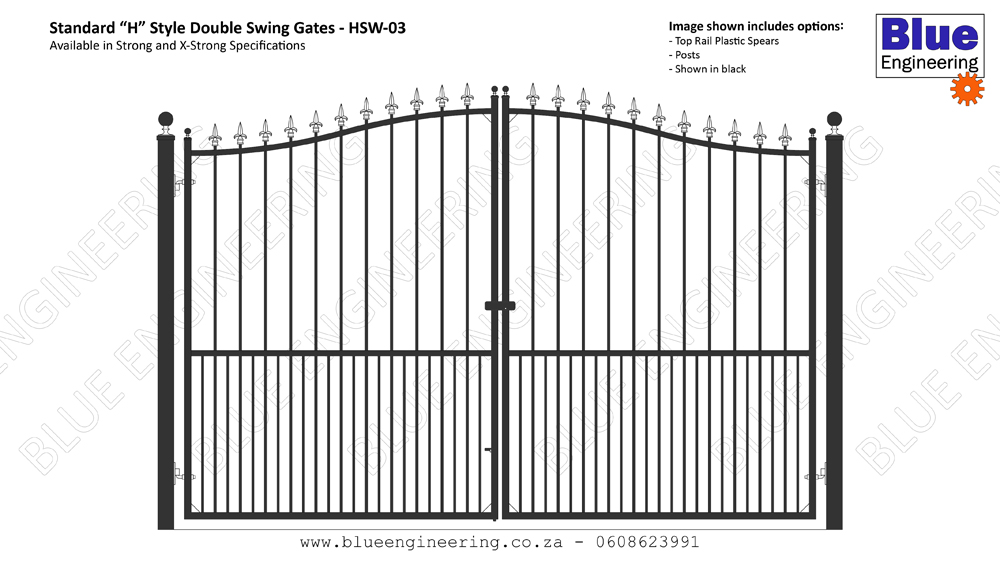

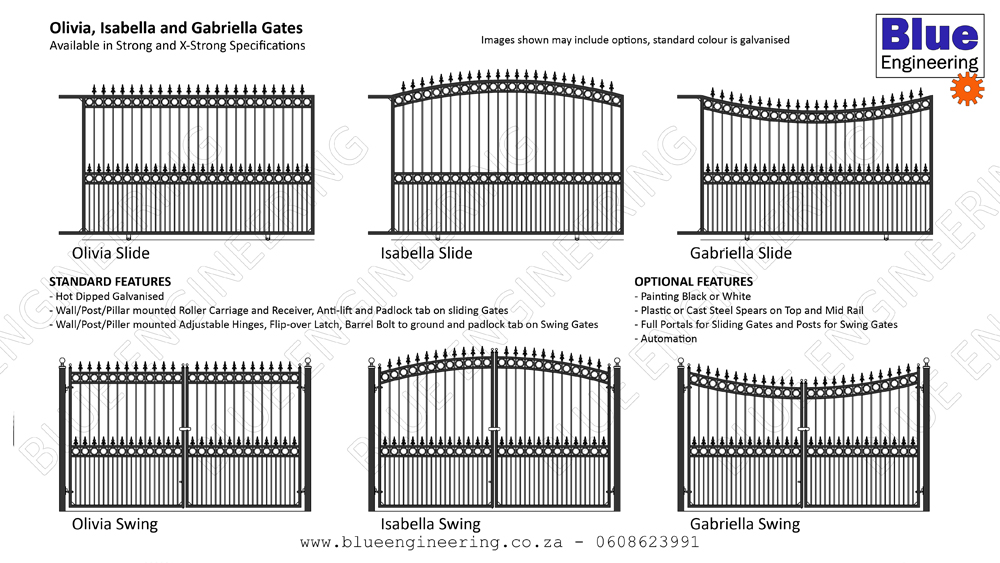

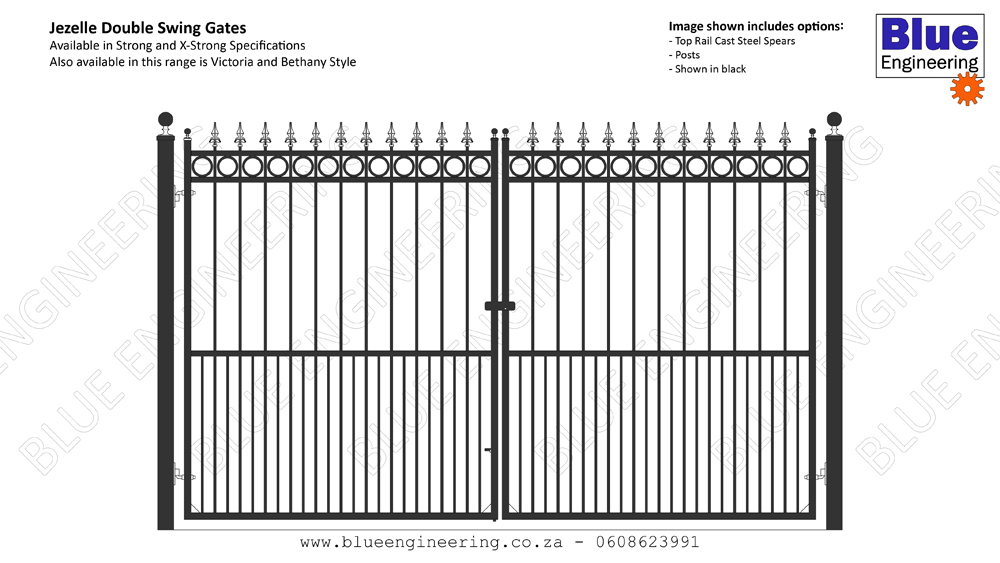

STRONG SERIES SPECIFICATIONS
Available in all styles
Maximum Width: 5000mm
Maximum Height: 2100mm
Gate Frame: 38x38x1.6mm square tube
Cross Rails:
25x25x1.6mm square tube
Upright Bars: 16x1.6mm round tube
Doggie Bars:
12x1.6mm round tube
Sliding Gate Tracks: 16mm round bar
Sliding Gates: Wall
mounted roller carriage and receiver
Sliding Gates: Anti-lift and padlock
tabs
Swing Gates: Adjustable hinges
Swing Gates: Flip over latch, drop bolts
and padlock tabs
Hot dipped galvanised
Main Options
Automation
Painting –
Standard colours are black and white
Plastic or Cast Steel Spears
Posts for
swing gates *
Portals for sliding gates *
*Posts and portals are only
required if there is no suitable wall/pillar/post to mount the gates on
X-STRONG SERIES SPECIFICATIONS
Available in all styles
Maximum Width:
Sliding Gates 6000mm
Maximum Width: Swing Gates 5000mm
Maximum Height:
2400mm
Gate Frame: 50x50x1.6mm square tube
Cross Rails: 32x32x1.6mm square
tube
Upright Bars: 16x1.6mm round tube
Doggie Bars: 16x1.6mm round tube
Sliding Gate Tracks: 50x10mm flat bar
Sliding Gates: Wall mounted roller
carriage and receiver
Sliding Gates: Anti-lift and padlock tabs
Swing Gates:
Adjustable hinges
Swing Gates: Flip over latch, drop bolts and padlock tabs
Hot dipped galvanised
Main Options
Automation Painting – Standard colours
are black and white
Plastic or Cast Steel Spears
Posts for swing gates *
Portals for sliding gates *
*Posts and portals are only required if there is
no suitable wall/pillar/post to mount the gates on
OTHER OPTIONS AVAILABLE
ON REQUEST
Custom colours for paint

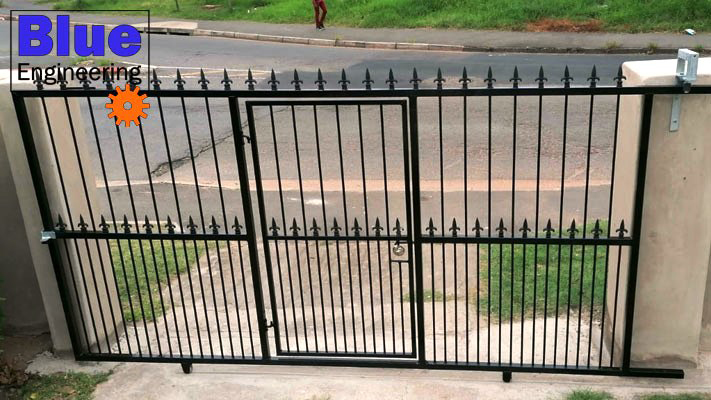

Pedestrian gates can be built into the
gates depending on gate size
Laser cut patterns can be integrated into the
gate
House numbers can be put on the gates
Matching pedestrian gates and
fence rails
GATE AUTOMATION AND ACCESS CONROL
- Centurion D2 Turbo, D5 Evo,
D5 Smart, D10 and D10 Turbo Sliding Gate Motors
- Centurion Vantage 400 and
Vantage 500 Linear Swing Gate Motors
- Beams
- Anti Theft Brackets
- 1:1
Standard Intercoms
- Video Intercoms
- Centurion G-Speak and G Speak Ultra
Access Control
- Mag Locks and Electric Locks
- FLUX Inductive loop
detectors
- Access Control Systems
- Solar Powered Gate Automation Systems
